Angled frame with grating cod. TGR

Drainage systems, Inspections and angle frames, Angled frames with gratings

Angled frame with grating cod. TGR

TGR.150, TGR.200, TGR.250, TGR.300, TGR.400

Features

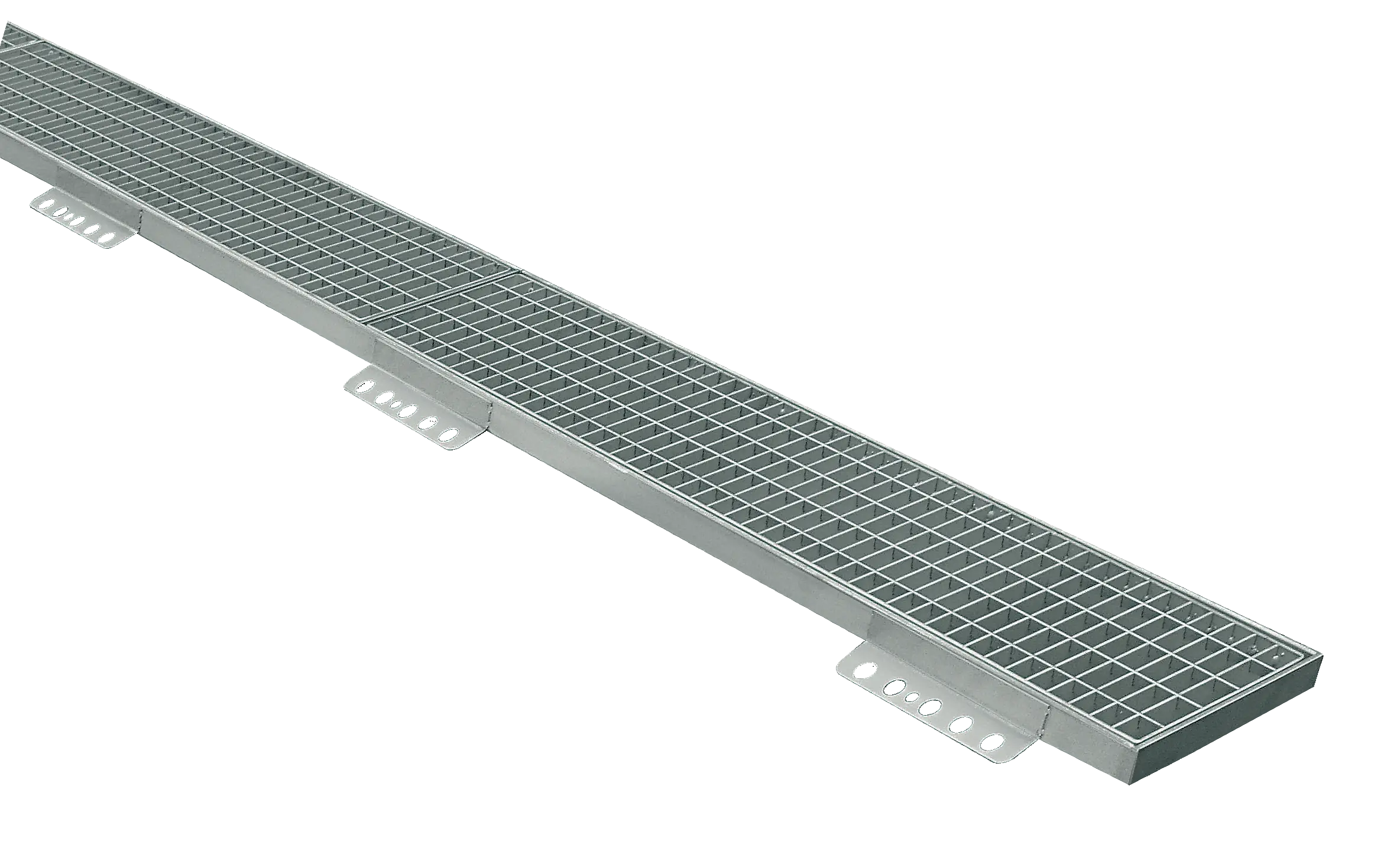

Normally constructed of AISI 304, this product is used in situations where it is desired to have a drainage channel with the surface in grid panels housed on angle frame, while maintaining the concrete drainage space. This is generally done in outdoor areas such as courtyards and yards. The grid panels, each 1.00 m long, are sized according to the different required flow characteristics, pedestrian or driveway. The modular frame elements are executed with a maximum length of 4.00 meters. The standard types are represented in the table below, but intermediate sizes can also be executed upon request.

Options

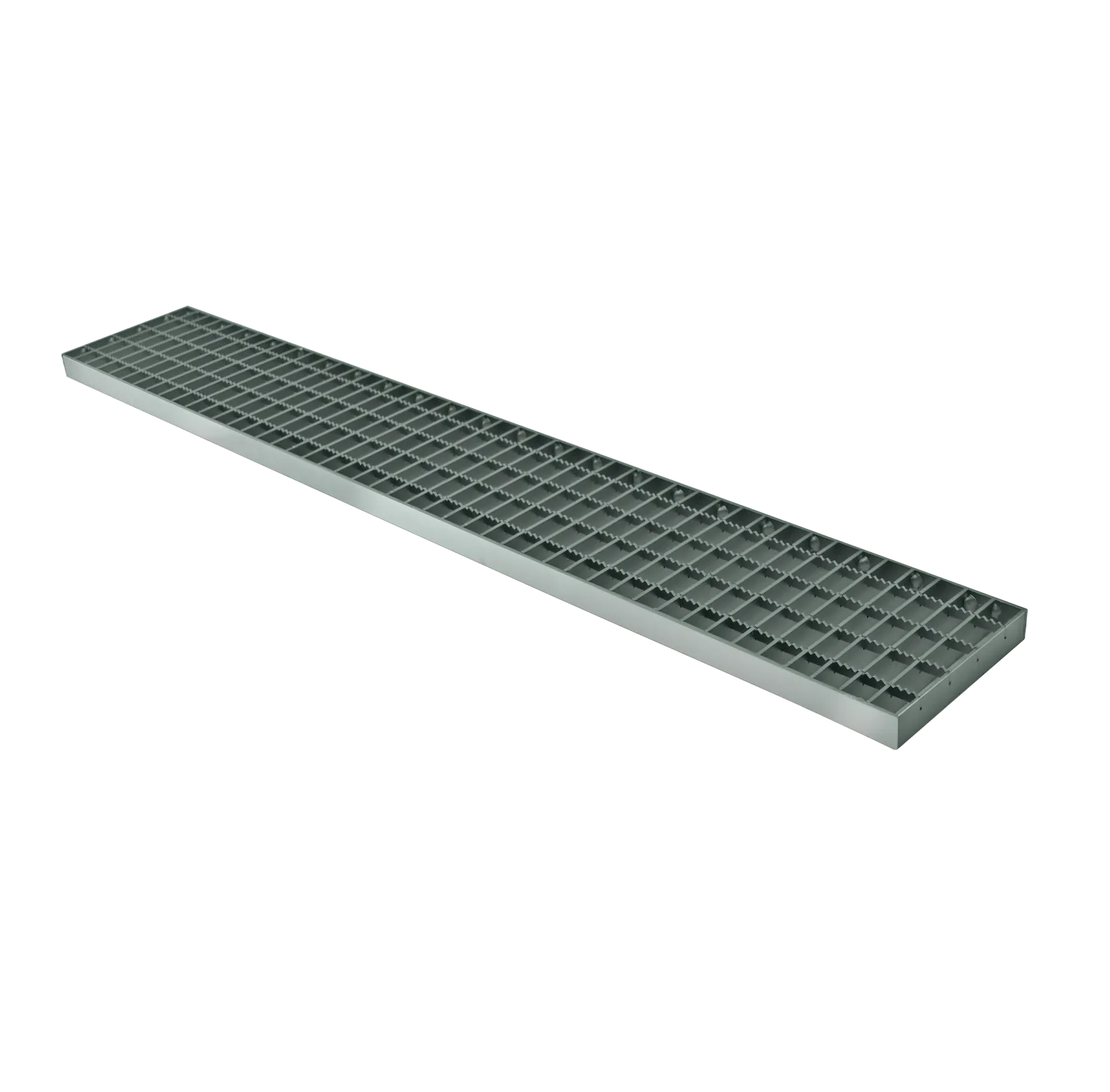

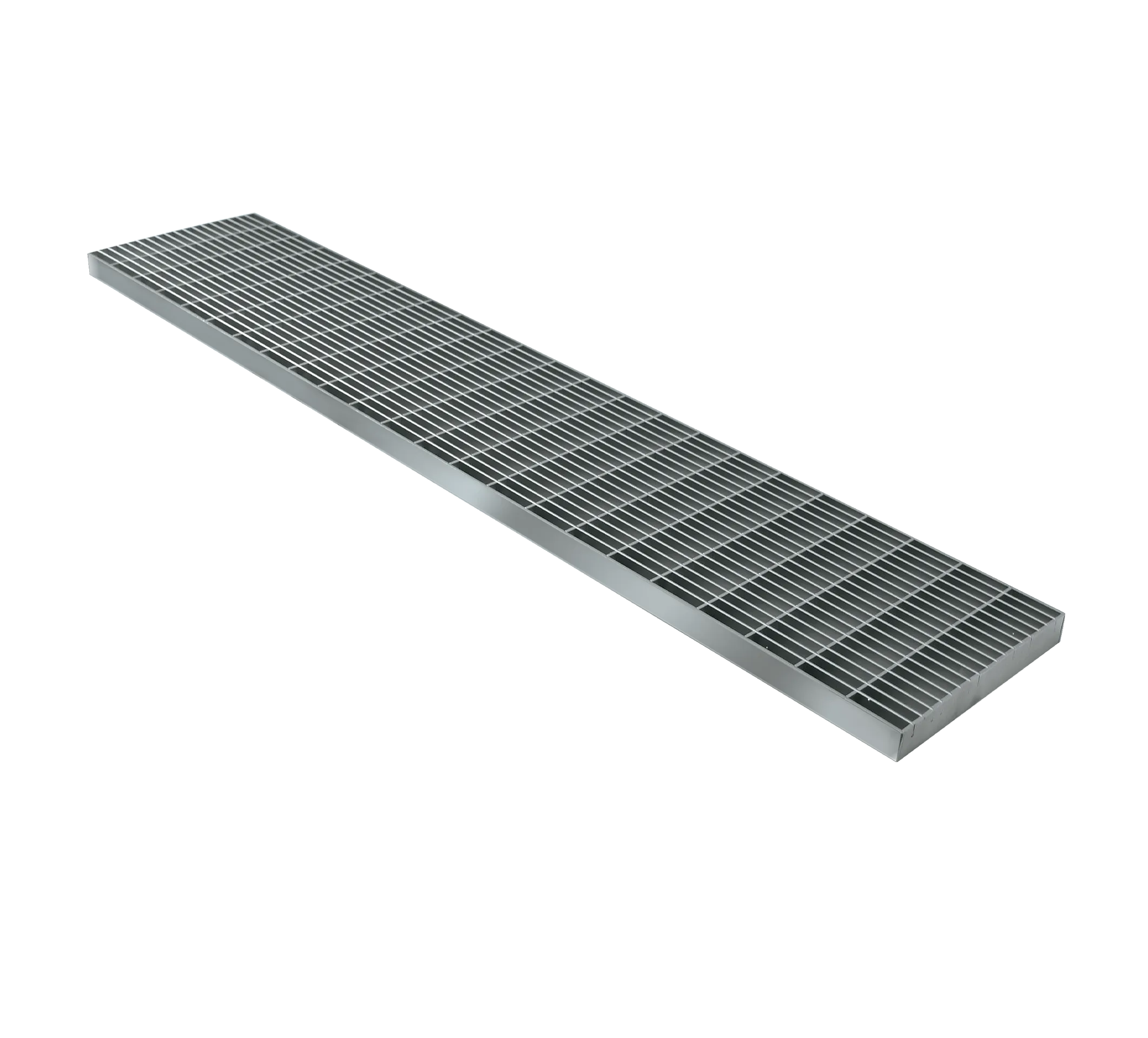

Generally made with non-slip and heel-resistant panels, they can, however, also be made with other optional covers.

Request information

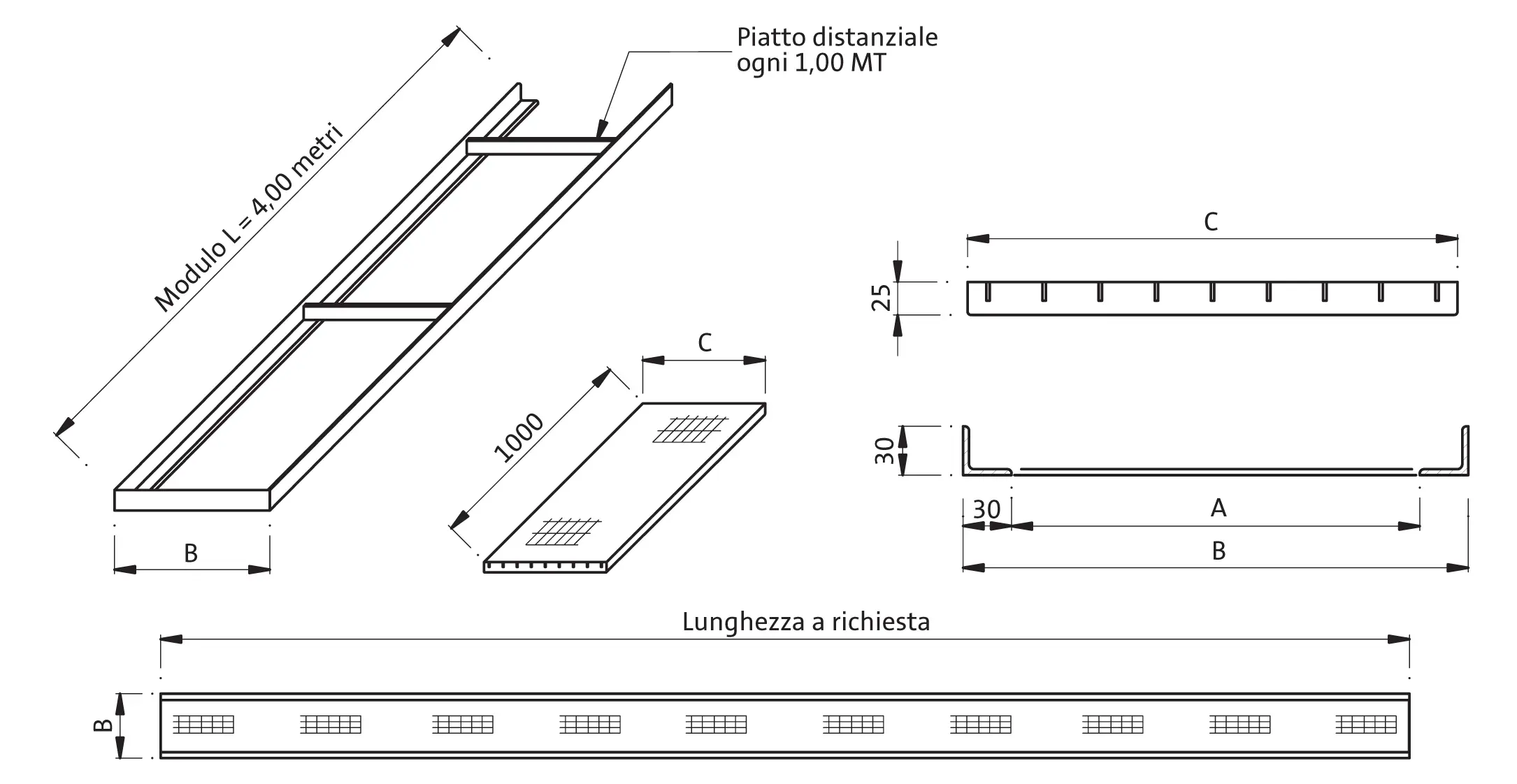

	A [mm]	B [mm]	C [mm]
TGR.150	61	121	108
TGR.200	108	168	155
TGR.250	158	218	205
TGR.300	208	268	255
TGR.400	308	368	355

Optional covers for channels and tanks with grating

Features

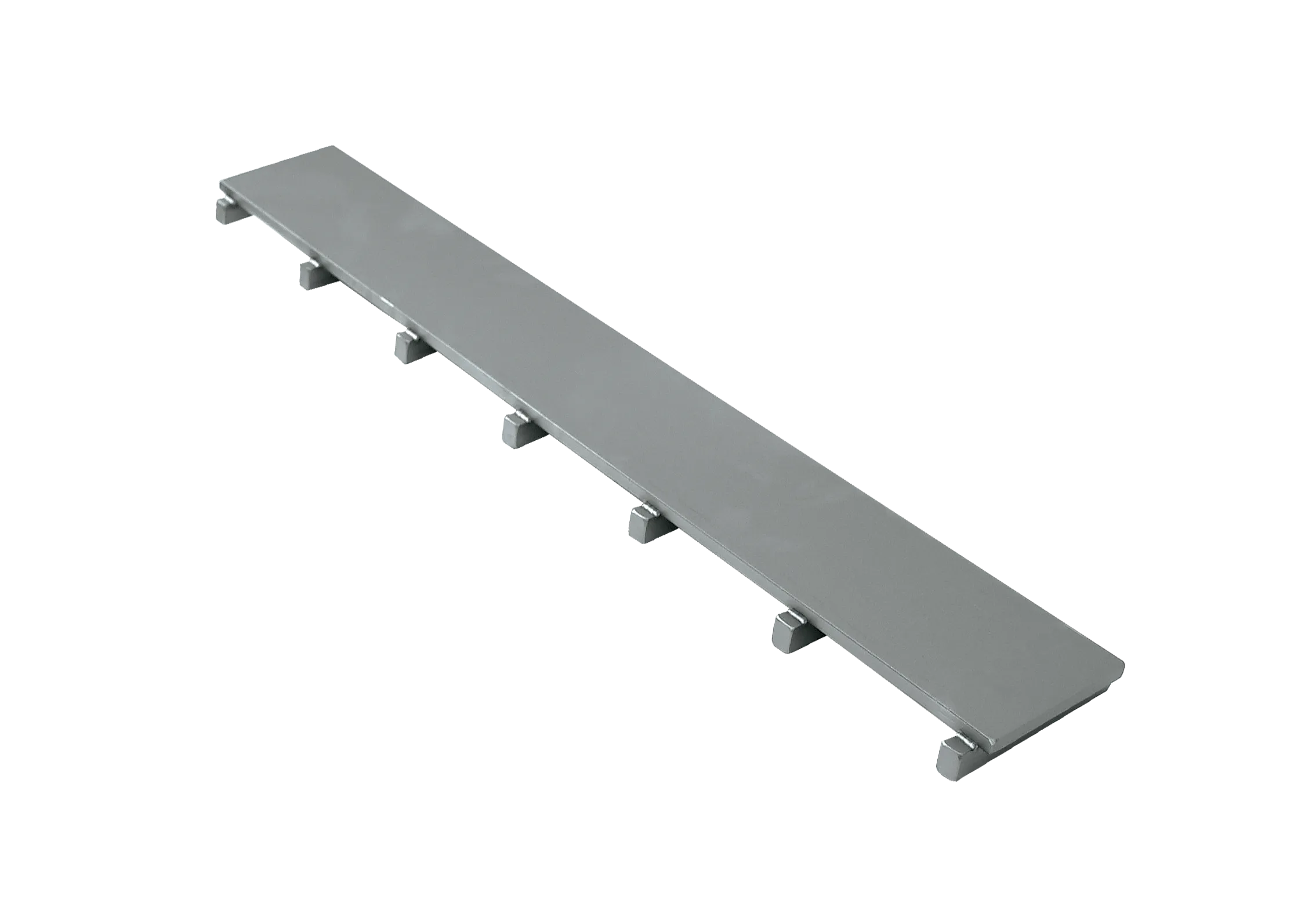

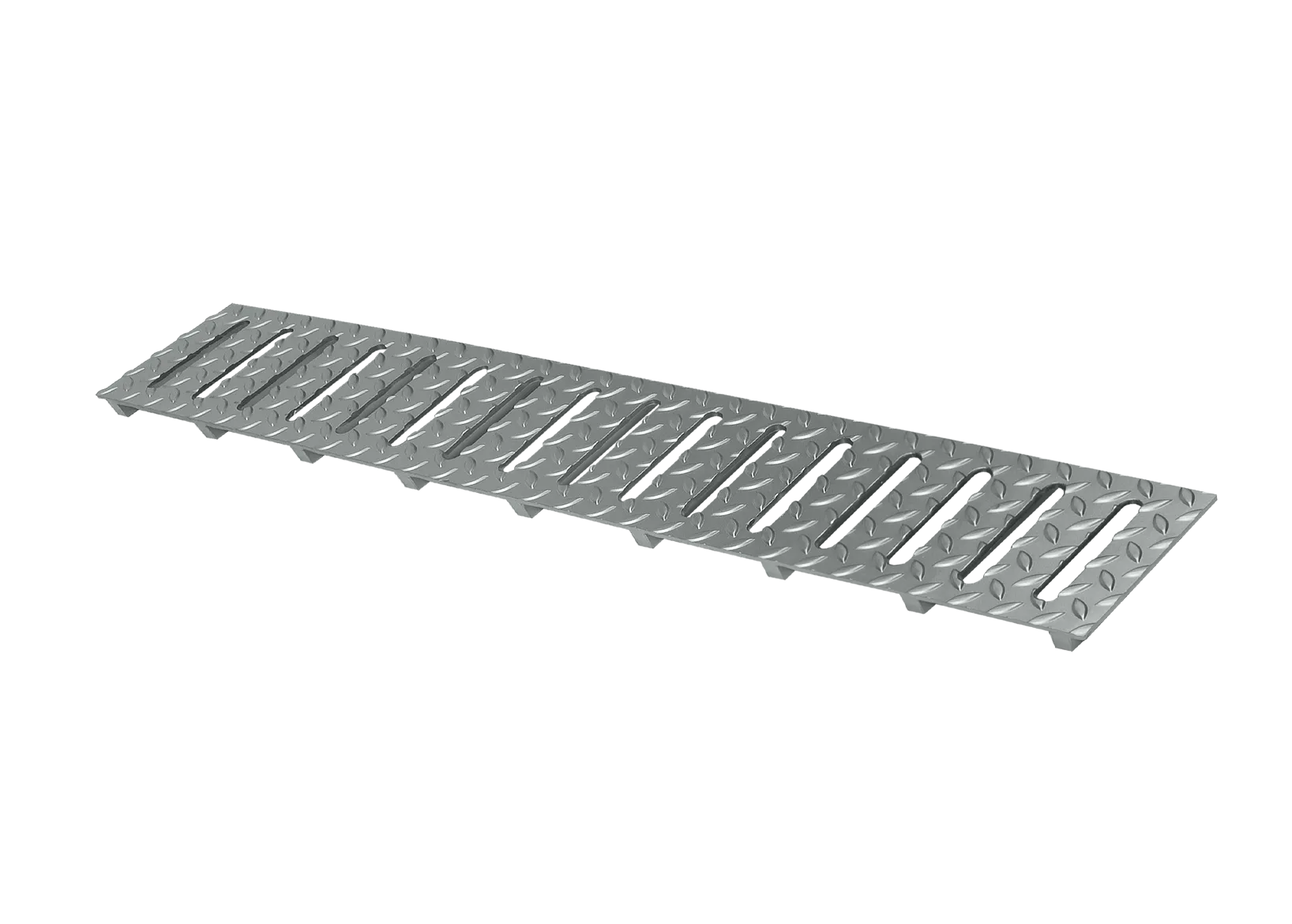

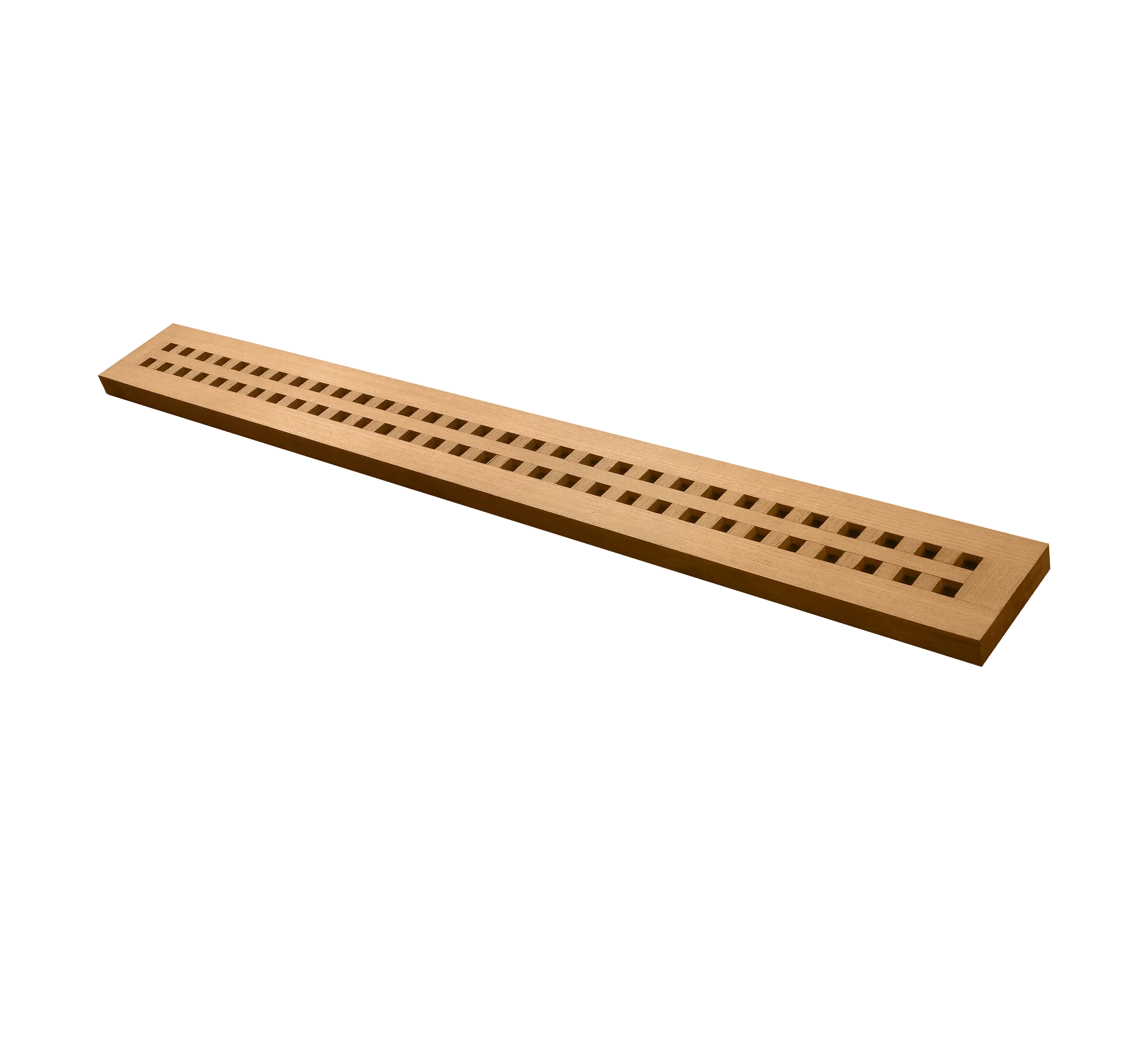

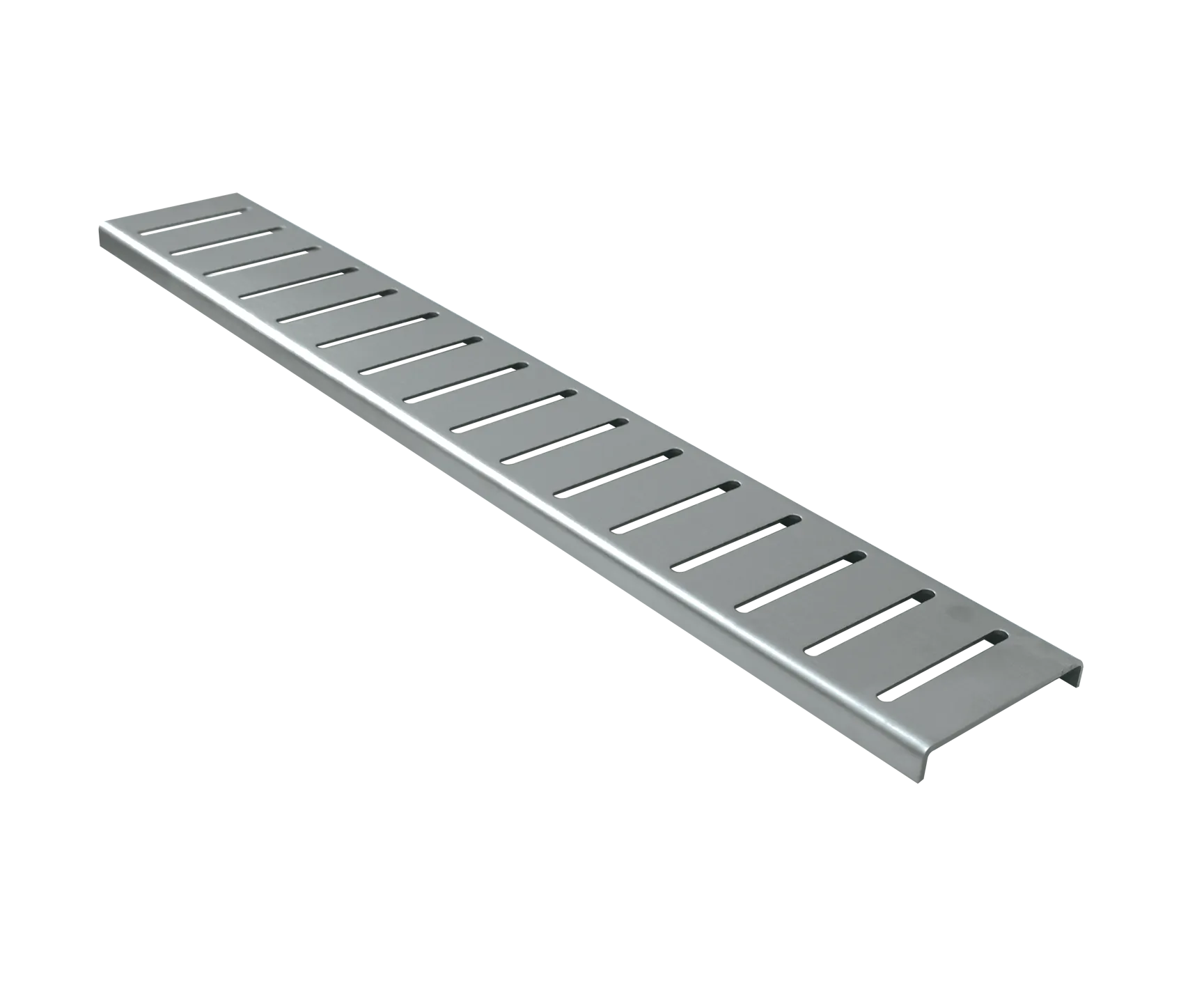

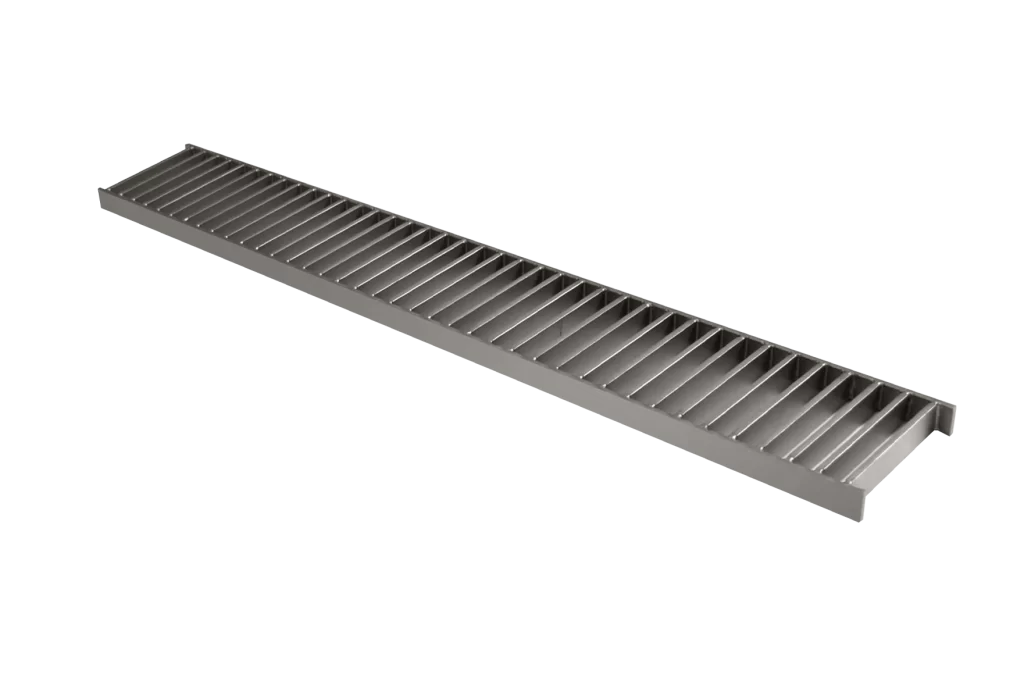

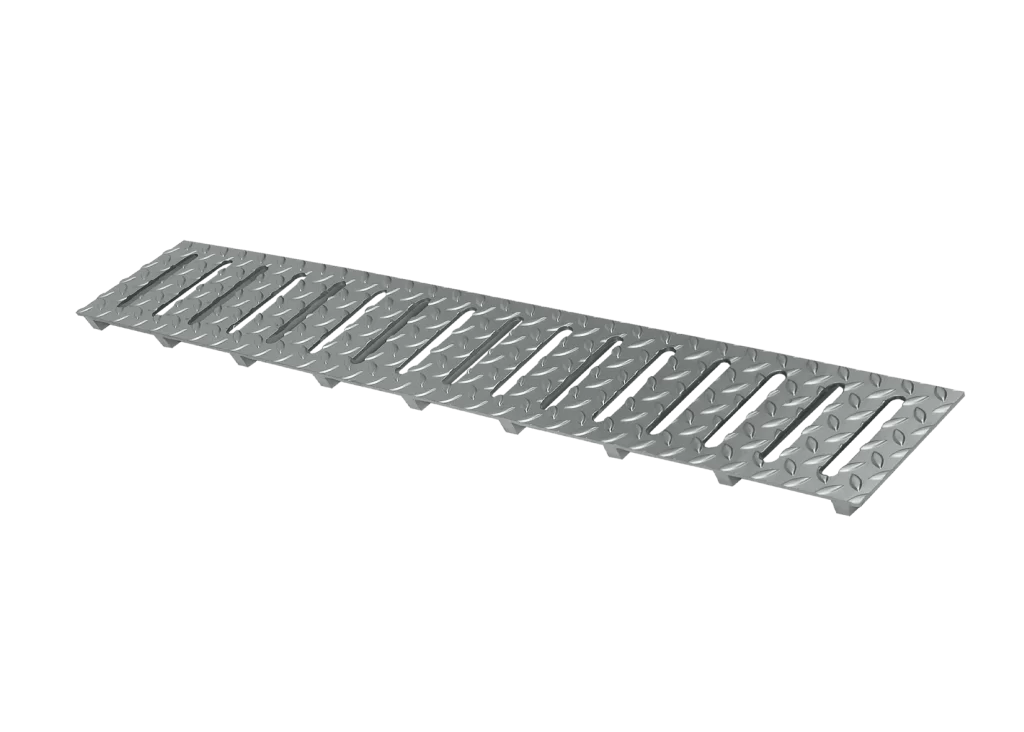

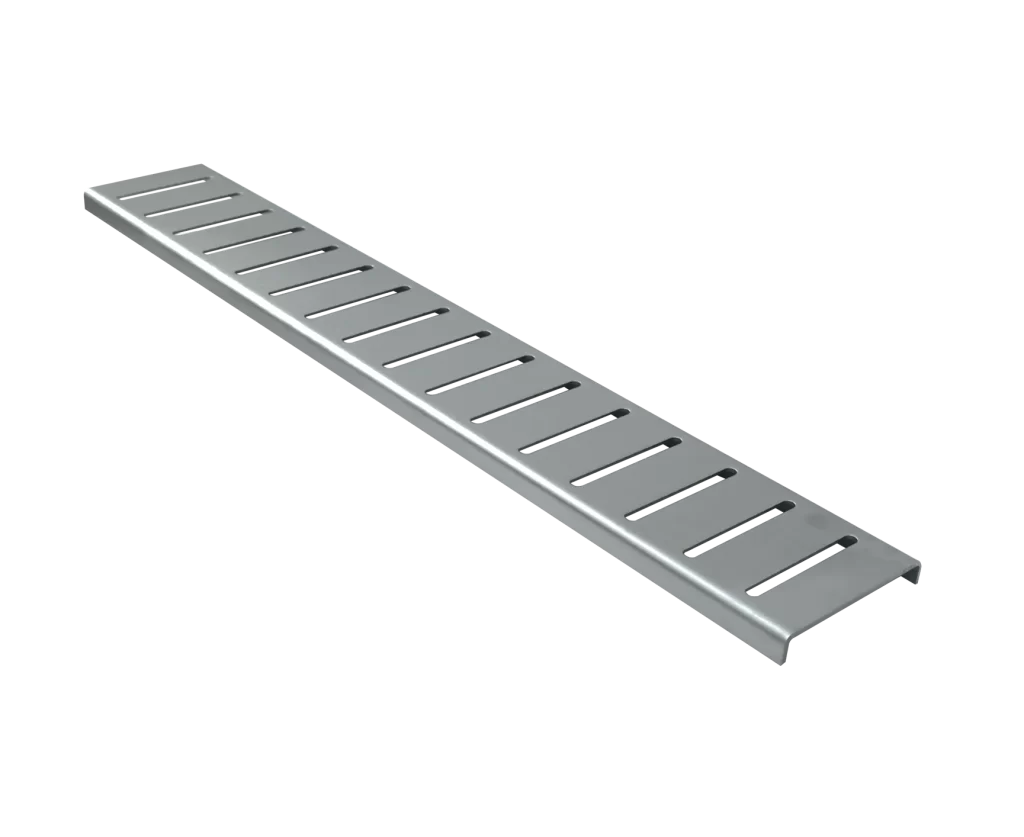

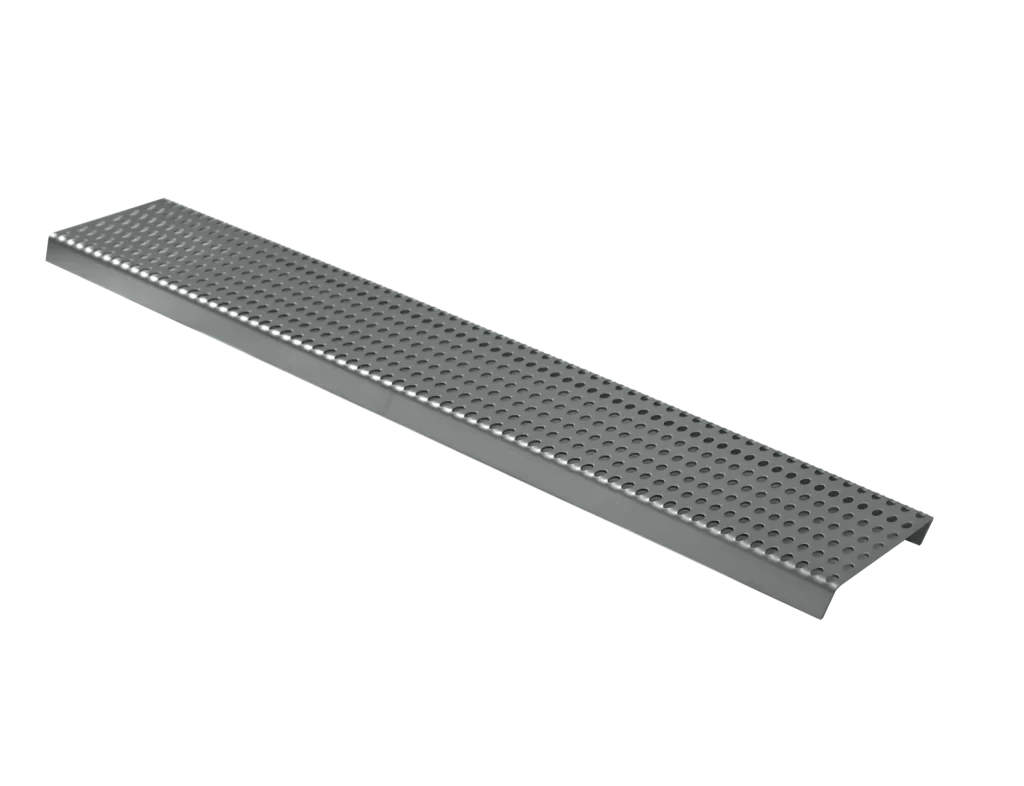

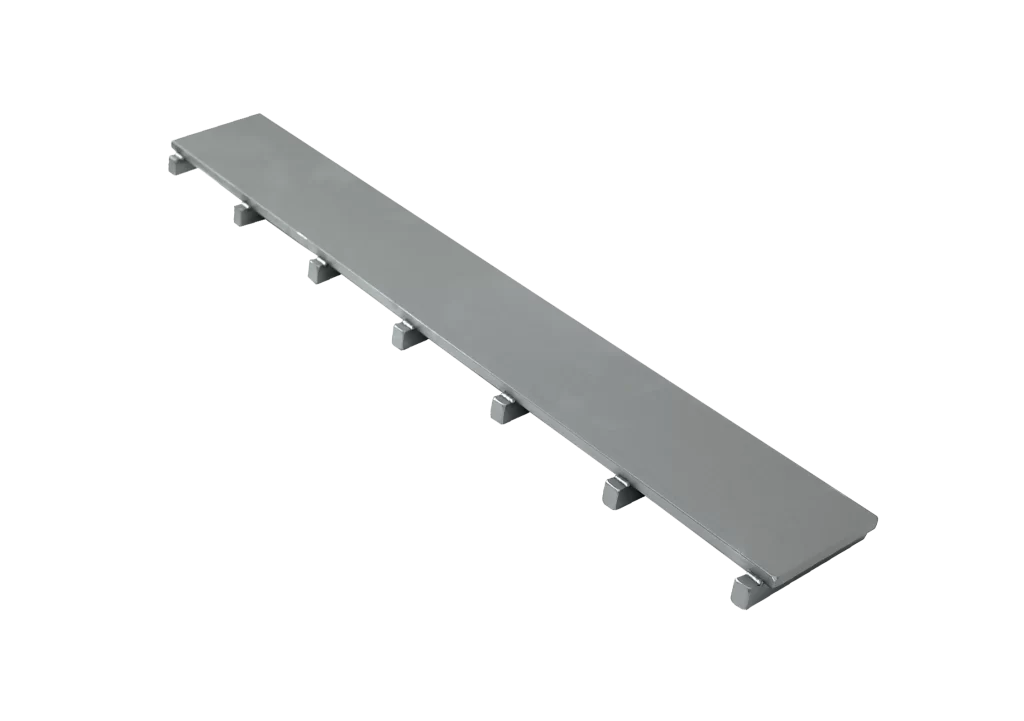

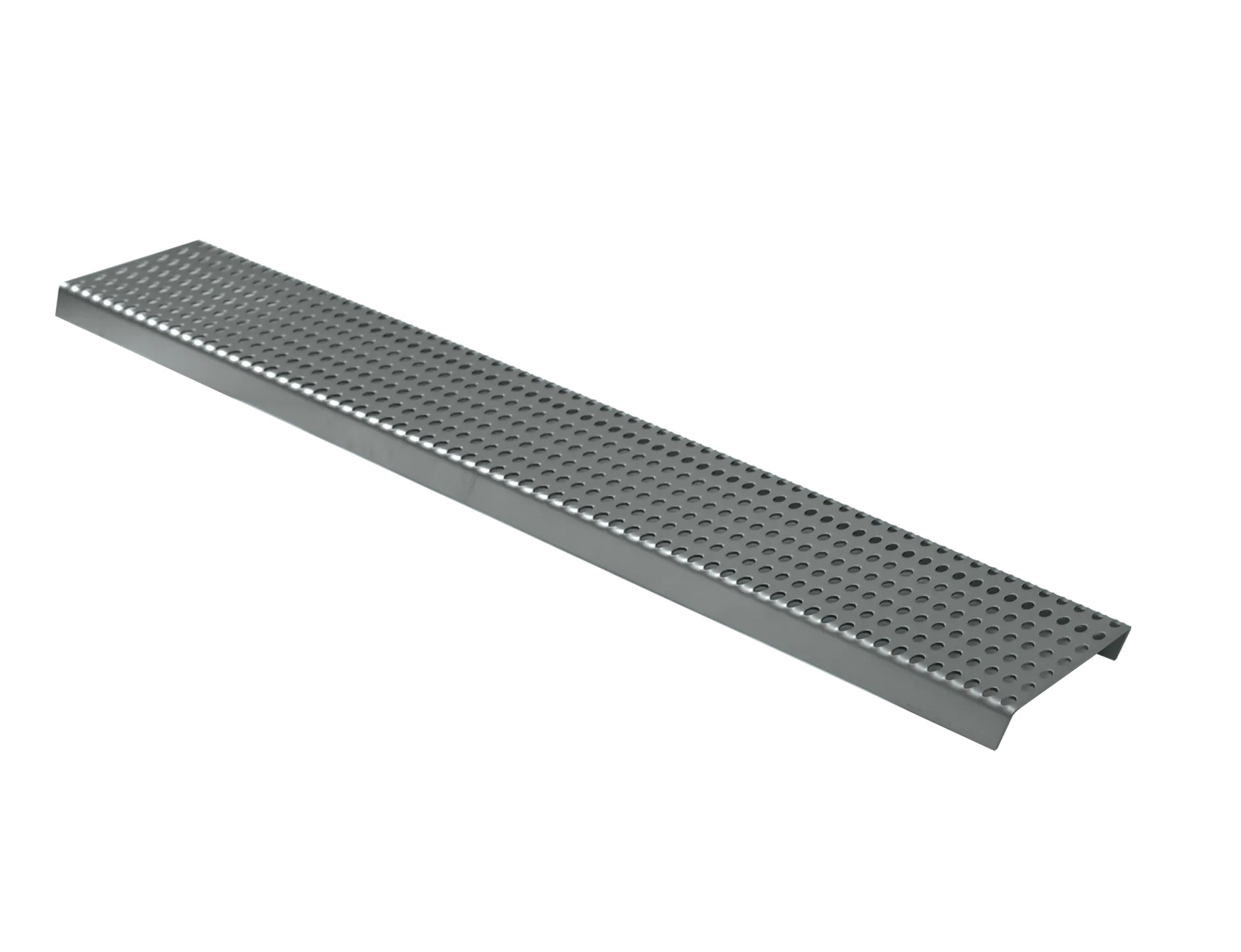

Most of our grid channels can be made with covers other than the standard version.
On this page you will find just a few examples, but you can also request covers according to your own design.
