PC.110, PC.112L, PC.113L, PC.112V, PC.113V

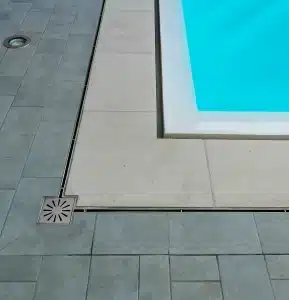

Channels designed specifically for swimming pools, locker rooms, shower rooms; in fact, the water discharge is through a narrowed slot of up to 8 mm, so that the channels are walkable even with bare feet.
They are executed with flattened edges to make the presence of the drainage channel less visible in the pavement.
For this reason, the sumps are also small in size and can be executed with the paving cover to integrate them seamlessly into the existing pavement.
They are made of AISI 304 or AISI 316 stainless steel, although AISI 316 is preferable since they are used in environments with a strong presence of chlorine or where particularly aggressive cleaning products are used.

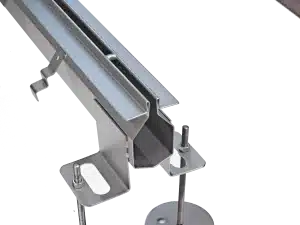

Their construction shape with perimeter fin allows the waterproofing sheathing to be optimally attached to the channel.

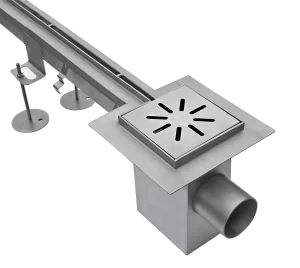

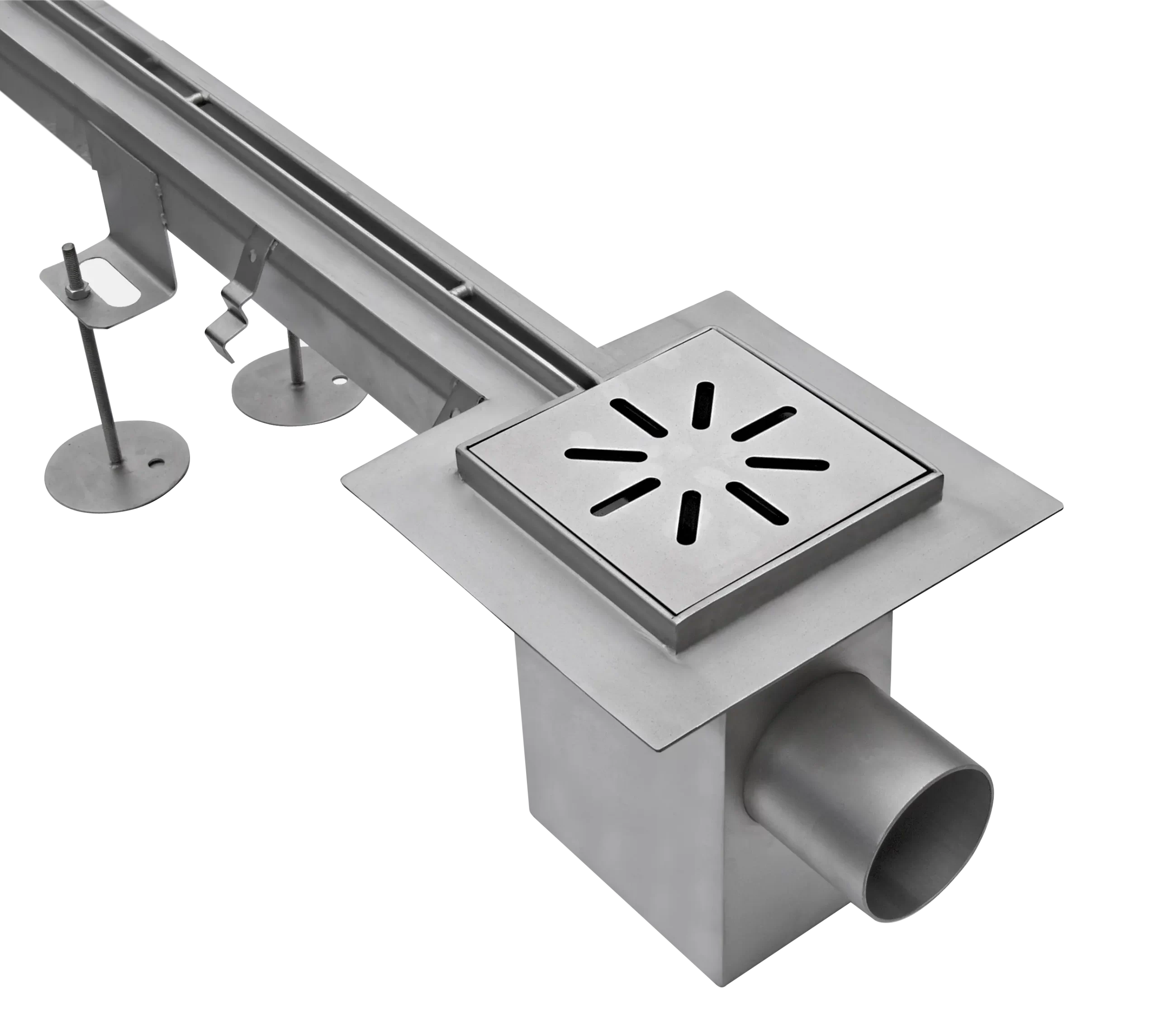

_x005F The inspectable manholes are siphoned and equipped with a filter basket. _x005F The assembly between the various manholes and raceways is provided by means of flanges with corresponding silicone gaskets and tightening with stainless steel bolts that guarantee airtightness._x005F
To facilitate the installation of particularly complex systems, a drawing with numbering is attached to the material for correct assembly sequence of the parts._x005F
The system is completely versatile, it is built according to the customer’s needs, and there are no constraints regarding the length of the raceways and the positioning of drains and manholes.

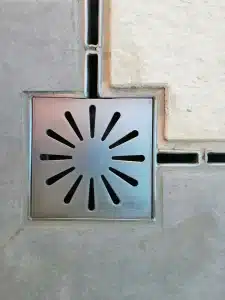

It is possible to make the sump with a paving cover to integrate it seamlessly into the existing pavement.All systems, upon request, can be equipped with adjustable feet for positioning and level shares.
In the technical drawing, a section of the channel is shown with a sequence of slope as a function of length up to 15.00 meters. Therefore, reference is made to heights corresponding to multiples of mt. 5.00.
